Tempmate M1

Tempmate M1, Multi Use Temperature Data Logger


Tempmate -M1 multi-use USB temperature loggers were especially developed for monitoring temperature-sensitive products throughout the entire cold chain. Customer-specific settings are installed directly ex-works so that each temperature logger is good to go out of the box. tempmate-M1 is especially small and light so that it can fit into virtually any package.

Tempmate S1data logger


  • Data logger type: Multi - use temperature logger
  • Temperature range: -30°C to +70°C (-22°F to 158°F)
  • Temperature accuracy: ±0.5°C/0.9°F (-20°C/+40°C)

  • Temperature resolution: 0.1°C
  • Data transfer: USB
  • Record capacity: 32 000 points (max)

  • Recording interval: 10 seconds to 24 hours
  • Recording duration: up to 12 months, programmable
  • Battery: CR2032, replacable
  • Protection class: IP67/NEMA 6
  • Alarm configuration: individual or cumulative alarm

  • Dimensions: 79L x 23W x 14H mm
  • Weight: 25 g
  • Certifications: CE, EN12830, ROHS

  • Certificate: Validation certificate


Tempmate Multi Use Temperature Data Logger



Tempmate M1, multi-use temperature logger with integrated USB port is the ultimate data logger for economical temperature monitoring of your stationary refrigerators and transported goods. For carrying out the analysis, simply connect tempmate M1 directly to the USB port of your PC. A PDF report is then automatically generated,  showing the temperature profile as well as all individual values plus statistical information. No additional hardware or software is required.

From processing over warehousing and transportation to retail and hospitality, monitoring the cold chain is critical at every station in the food cycle. In addition, there are legal regulations for which the observance and documentation of certain temperatures are mandatory. These include, for example, the HACCP regulation as well as numerous environmental, health and safety regulations.

Tempmate data loggers are robust and waterproof, making them ideal for use in the food and beverage industry. The devices are easy to clean and therefore are increasingly used for monitoring purposes in food processing and preparation. During storage and transport, your cold chain can be tracked ensuring that your set limits are kept. In commercial dishwashers, Tempmate data loggers ensure that the equipment gets cleaned or sterilized at the correct temperature.

Tempmate USB Temperature Data Logger

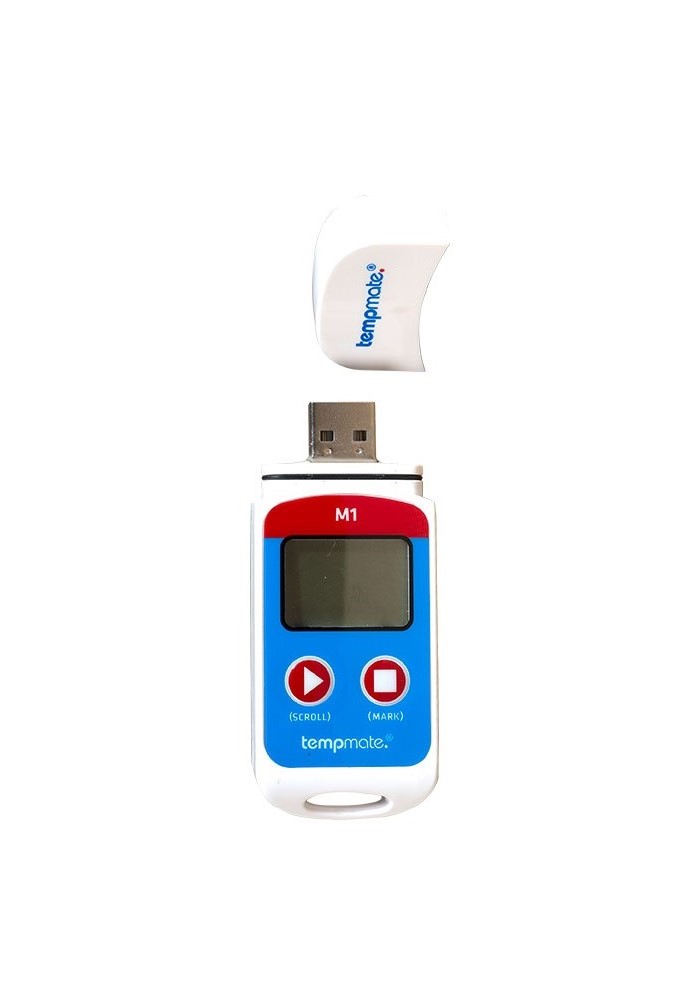

USB Connection

Tempmate Multi Use data Logger

IP 67




Tempmate USB PDF temperature Data Logger






Tempmate Temperature Data Logger

EN 12830 Compliant
