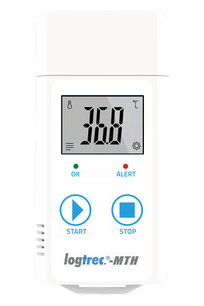

Logtrec.® MT and MTH

Multi Use Temperature and Humidity Data Loggers

The logtrec.®-MT and MTH Multi Use Temperature Data Loggers are depeloped for the GDPcompliant monitoring of temperature-sensitive products along the entire cold chain.

The logtrec.® does not have to be labeled as dangerous goods according to IATA guidelines and is therefore also ideal for monitoring temperature-sensitive air freight shipments.

SPECIFICATIONS

Data logger type: Multi - use data logger
Temperature range: -30°C to +70°C
Humidity range: 0% RH to 100% RH
Temperature accuracy: ±0.20C (-20°C to +40°C)
Temperature resolution: 0.10C and 0.1% RH
Data transfer: USB
Record capacity: 32 000 points
Recording interval: 10 seconds to 24 hours
Recording duration: 110 days (standard) or 12 months programmable
Battery: 3.0V lithium Battery/CR2450

replaceable
Protection class: IP67/NEMA 6
Alarm configuration: customizable
Validation Certificate: six points NIST Traceable
Certifications: EN12830,RoHS,CE,NIST
Dimensions: 85L x 45W x 18H mm
Weight: 25 g
Certifications: CE, EN12830, ROHS
Certificate: Validation certificate

Tempmate Multi Use Temperature Data Logger

Logtrec.-MT Data Sheet

Logtrec.-MTH Data Sheet

Reliable Cold Chain Monitoring

The logtrec.® Multi Use Temperature Data loggers are depeloped for the GDP compliant monitoring of temperature-sensitive products along the entire cold chain. Equipped with a powerful battery, it has a running time of up to 365 days. A high-precision digital temperature sensor ensures maximum precision and short response times. So that your goods are optimally monitored at all times.

The logtrec.® does not have to be labeled as dangerous goods according to IATA guideline sand is therefore also ideal for monitoring temperature-sensitive air freight shipments. It also fulfills the requirements of EN12830.

Certified

Certified according to EN12830, CE and RoHS - every logtrec.®-MT is delivered with an internal validation certificate

Automatic Reports

When the shipment arrives, the data logger creates an authomatic complete report in PDF and CSV

Serial Number

In addition to its model name, each product has a unique serial number for identification.

Validation

NIST traceable 6-point validation certificate, data logger is recognized like a USB stick

Accuracy

A digital temperature sensor with highest precision over the entire measuring range is used

Size

Length: 85 mm
Width: 45 mm
Heigth: 18 mm

The data loggers are delivered preconfigured and are ready for immediate use. The reporting is also done automatically. After the goods have arrived at the recipient, a complete report is created as PDF and CSV. The validation certificate can also be found as a PDF on every data logger. All parameters can be set manually using the logtrec.® software if required.

The logtrec.® is often used in pharmacies, hospitals and medical practices for monitoring medicine refrigerators and during the transport of medicines. It is also suitable for temperature control during the transport of food and beverages as well as other temperature-sensitive goods. It is also often used for stationary monitoring in storage rooms.
